Full automatic mechanical recycling type sand/shot blasting room system
A set of complete sandblasting room system consists of booth body, air source system, sandblasting system, abrasive recycling separating system, ventilation dedusting system, workpiece conveyor system, labor protection system, lighting system and electric automation control system, the sand/shot blasting booth is mainly used in the surface sand/shot blasting treatment of engineering machinery, bridge steel structure, heavy machinery, container, locomotive, aerospace, petrochemical, power, weapons. We adopt advanced module design, pre-formed plant, on-site assembly; reasonable structure, nice-looking, design and manufacturing period can be controlled within 2-3 months.
The full automatic mechanical conveyor recycling type sand/shot blasting room adopts the mechanical conveyor recycling abrasives, this way is more efficient, environment protection, and low cost. It can save 80% energy and 20 times efficient than the same type pneumatic convey recycling way.
Sand/shot blasting room process: workpiece go in →sand/shot blasting→ recycle →filter→dust removing →workpiece go out, the process can be controlled automatically.
 |

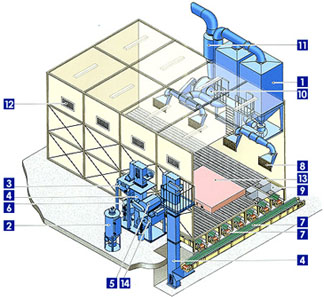

Sand/shot blasting room diagram
1.booth deduster
2.separating deduster
3.sand(shot) hopper
4.hopper elevator
5.first-stage separator
6.ACM type sandblaster
7.belt conveyor structure
8.dust suction mouth
9.Honeycomb floor hopper
10.big fan
11.silencer
12.air inlet
13.rail trolley
14.two-stage separator |
|
☆ ☆ according to user requirements, design meet the requirements of large-scale production line and sand blasting room / blasting room project. ☆ ☆ |
 |
 |
|
Full automatic scraper conveyor mechanical recycling sand/shot blasting room |
Full automatic belt conveyor mechanical recycling sand/shot blasting room |
 |
 |
|
Wind power tower mechanical recycling sand/shot blasting room |
Full automatic mechanical recycling sand/shot blasting room for steel structure workpiece |
