Mould/film-coating clamp cleaning sandblasting cabinet
LS1210F-A vacuum film coating fixture cleaning upper cyclone suction type sandblasting cabinet   LS1313F-A aluminum alloy casting/rubber mould cleaning vortex separating suction sandblasting cabinet

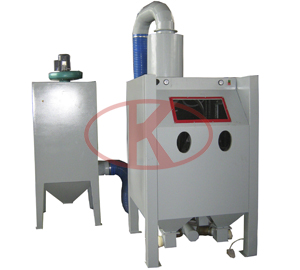

LS1210F-A vacuum film coating fixture cleaning upper cyclone suction type sandblasting cabinet

With manual fixed/trolley turntable, turntable diameterΦ600~700mm

Working cabinet: L1200×W1000×H1000mm
  LS1313F-A aluminum alloy casting/rubber mould cleaning vortex separating suction sandblasting cabinet
ith manual trolley turntable, turntable diameterΦ900~1050mm
Working cabinet: L1300×W1300×H1130mm

LS1212F-A manual turntable mould cleaning suction sandblasting cabinet

Steel mould/rubber mould cleaning vortex separating high efficiency pressure sandblasting cabinet

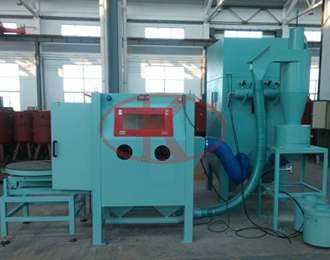

LS1212F-A manual turntable mould cleaning suction sandblasting cabinet


With manual fixed/trolley turntable, turntable diameterΦ700~900mm
Working cabinet: L1200×W1200×H1000mm


Steel mould/rubber mould cleaning vortex separating high efficiency pressure sandblasting cabinet
With trolley turntable, turntable diameterΦ1000~1200mm
Working cabinet: L1500×W1500×H1150mm

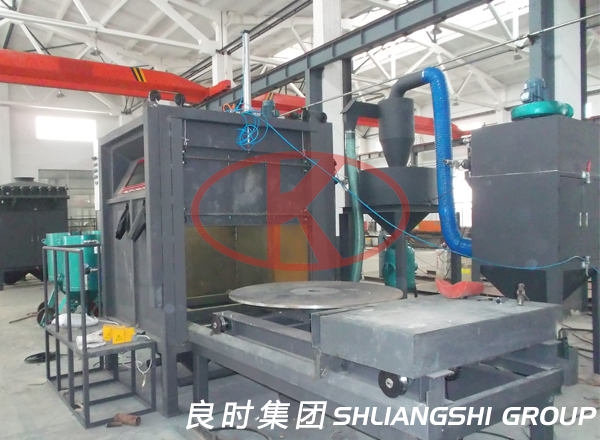

Aluminum Wheel mould cleaning Sand Blasting Machine / playing machine
Aluminum Wheel mould cleaning Sand Blasting Machine / playing machine


    Shanghai Liangshi designs and manufactures a set of aluminum hub mould environment protection sandblaster for a aluminum hub company, this mould environment protection sandblasting cabinet is mainly used in removing aluminum hub mould surface coating of mold spray, the equipment adopts pressure sandblasting cabinet, it has the property of environment protection high efficiency and stable. This aluminum hub mould rubber lined sandblasting booth is designed to be a closed booth where the work piece processing work can be controlled dynamically, the whole is supported by bracket and seating, the structure dimension is L×W×H=1800 mm×1800 mm×2500mm,manual ash cleaning gun 2pcs.
    Aluminum hub mould environment protection sandblaster mainly consists of rubber abrasion resistant sandblasting booth, cylinder counter-weight elevating closed door, tract flatcar fixed microscope stage, tract flatcar, automatic turntable and automatic turntable decelerator driving structure, track trolley driving structure, vortex separator, sand storage cabinet and steel structure platform, double-gun electric control pressure sandblaster, sandblasting booth and sand-sweeping, two sets pneumatic impulse vortex cartridge deduster, sandblaster operating booth lighting, electric control system.

       Shanghai Liangshi has succeeded in designing and manufacturing mould cleaning sandblaster for many domestic manufacturers in the field of mould sand/shot blasting cleaning, the products are rubber mould sandblaster in pharmacy food industry, vacuum film-coating mould sandblaster in optical field, automobile manufacturing aluminum hub mould sandblaster and shot blasting cleaning machine aluminum alloy casting mould coating, steel mould cleaning sandblaster, plastic mould cleaning sandblaster, electronics medical precise mould cleaning blaster, etc.
