Motorcycle Body sandblasting / spray drying two houses

Our company specializes in providing efficient and cost-effective manner railway locomotive blast cleaning of large parts of the overall solution for the rail vehicle industry, it can effectively deal with internal and external rail vehicles blasting various aspects, such as subways, light rail, rail locomotives, passenger rail, rail trucks, tankers, etc; locomotive after sandblasting can achieve good surface quality and cleanliness, sandblasting equipment can arbitrarily choose a variety of abrasive blasting, and thus suitable for steel, stainless steel, aluminum and other materials of different locomotives vehicle blast cleaned surface treatment. The entire blasting system according to customer demand for tailor-made to meet customer efficiency, demand for safe, environmentally friendly blast cleaned.



Urban rail vehicle system requirements for blasting the body can handle the maximum dimensions of 27000mm × 3200mm × 4050mm, blasting the area for the aluminum body, stainless steel body and steel inner and outer surfaces of the vehicle body, the body surface after blasting roughness of 3.2 ~ 6.3μm. In addition, taking into account the urban rail vehicle doors, windows quantity, the whole piece without blasting area, while small product quantities and varieties, so the blasting system must be flexible, able to meet one day a festival car production requirements. Dust generated by blasting style, noise has a very big impact on the environment, in order to meet environmental requirements, dust emissions blasting systems must meet the requirements of GB16297-1996, noise is less than 85dB (A) (sandblasting the outside).




Shanghai Liangshi is a professional manufacturer of railway locomotives sandblasting, sandblasting the locomotive body can be designed and built according to customer special requirements; left and right sides of sandblasting room is equipped with an electric car to work, easy operator blasting operations, the entire sandblasting room lined with wear-resistant, noise reduction rubber liner, two cartridge-type dust collector for the entire blasting room ventilation and dust, the dust content of less than 10mg / m3. An automatic pellets winnowing and filtering devices may be too large or too small, carved out from the media scrap election, fall into the field of recycling waste hopper with pellets winnowing automatic shaker. While providing operator protection devices, including the operating personnel protective helmet, clothing and Siamese sand blasting gloves, breathing filters and breathing thermostat to provide maximum operator safety and healthy working environment.
Apart from providing reliable quality products and high technology, but also provide complete technical advice, 'turnkey' full range of installation services and staff training.

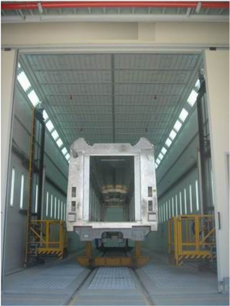

Cleanup sandblasting rail vehicles
Sandblasting Size:l x w x h = 30 x 6 x 6.5 m;
Full floor mechanical recovery system;
Vehicle following installation pit, shot peening operation;
4 individual workers working platform, two pressure feed blast machine;
Lighting device on the side walls, open on both sides;
Optional electric work platforms;
Optional automatic flexible lift gate;





Railway rolling stock and spray paint spray booth room
Railway locomotives and spray paint spray booth room is available for housing and bogies for railway vehicles and spray paint dry place, the width has 6 ~ 7m, length up to 10 ~ 30m, or even longer, large horizontal cross-sectional area. Railway vehicles using air curtain spray booth "on to send the next row" piecewise ventilation system effectively reach the national standard paint shop maximum allowable concentration 100mg / m3, to meet the requirements of labor protection.
Paint room air conditioning system uses air, can effectively meet the coating process to ensure the film quality, improve the working environment, reducing workers' health hazards and environmental pollution, paint room air in full compliance with the coating process for air cleanliness, temperature, humidity requirements.
Mist spray booth cleaning system can be used dry or wet mist mist purification purification, we can use double-sided curtain impact altitude exhaust emissions. Spray paint the room with explosion-proof lighting systems, mobile elevating work platforms, painting labor protection products are greatly facilitate the workers paint job.
Our company can design and manufacture according to customer requirements of environmental protection, energy saving and efficient spray booth, also provides complete technical advice and 'turnkey' engineering services.
