Gear numerical control shot blasting & strengthening equipment for CNR

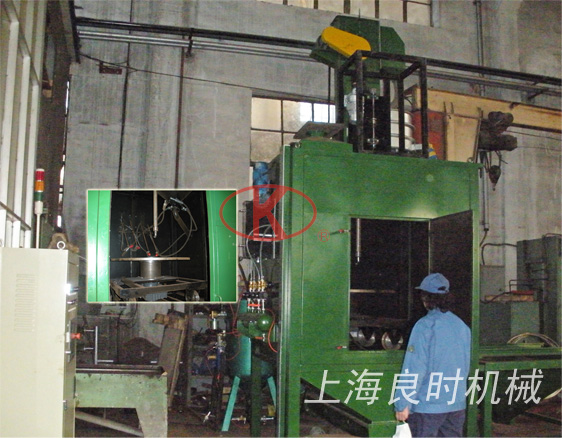

Gear numerical control shot blasting & strengthening equipment for a vehicle factory of CNR corporation
SHLiangshi company as one of the famous supplier of surface treatment has been committed to develop and produce shot blasting and strengthening equipment, which has core technology and self-owned brand in this field. We supply surface treatment equipments of high technology and quality for engine vehicle industry, including shot strengthening equipment, sandblasting equipment, shot blasting machine and polishing equipment. Currently, we have held most shot blasting and strengthening technology for engine vehicle.
The numerical control shot blasting and strengthening equipment for CNR corporation had the following characters:
1. Can actualize PLC programme control for all parameters of shot blasting and strengthening ;
2. Shots flow and reserve can be controlled precisely;
3. The precise positioning of workpiece;
4. The complete inspection of movement of the nozzle;
5. Automatic safety protection for failures.
Numerical control shot blasting strengthening equipment for engine vehicle gear
Shot blasting strengthening process makes use of high speed shots flow (fed by shot blasting machine) to impact the metal surface in order to generate plastic circulating strain layer. It resulted in the beneficial change of microscopic structure and obtaining residual stress field. The microscopic structure and residual stress can improve fatigue failure resistance and stress corrosion resistance so as to attain higher reliability and duration
Engine vehicle gear shot blasting and strengthening
Shot blasting and strengthening is a normal application for gears. Gears of any size and design all can improve bending fatigue resistance of dedendum by shot blasting strengthening. The interface of gears generates load, which can form bending stress at the bottom of gears.
The gears will all process shot blasting strengthening after carburizing and quenching or surface hardening. To increase the surface hardness is in same proportion to form pressure stress. It lies on the parameters of carburizing treatment and shot blasting. The maximum residual stress is between 170-230 ksi (1170-1600MPa) after carburizing and strengthening treatment. Commonly we use the shots of high hardness (55-62 HRC) for the carburizing and strengthening. It also can use the shots of less hardness (45-52 HRC) according to the conditions, which will generate the pressure stress of 50% of hard shots.
A pressure stress will be generated by the hammering and honing, which is a best method to form opposite contact fatigue on the gears. To go along the surface finishing for the concaves generated by shot blasting, can disperse the contact load through large surface and reduce the contact stress.
About Shanghai Liangshi IntelRobot：
Shanghai Liangshi IntelRobot Technology Corporation (Stock
code：837430 Accumulate richly and break forth vastly; innovate continuously ) We
provide surface treatment solution for global customers. Engaged more than twenty
years in the industry, Shanghai Liangshi is a professional manufacturing and automatic
system integration enterprise, specialized in researching, designing, manufacturing,
project installation and project consulting. We can provide our customers with:
1. We provide process system solution and process equipments of surface treatment shot blasting, thermal spraying, coating equipment.
2. We provide professional process system solution and process equipments of digital control automation and robot technology application.
3. We provide professional Integrated solution for pressure bearing system in fields of food dairy, biopharmaceutical, refrigerating, petrochemical, marine engineering, energy, paper-making, fabrics, etc.
4. We provide environment protection blasting and painting equipment: process solution and equipment of VOCs waste gas, waste water, dust, noise treatment system.
Leading products of our company are as follows:
Main business: designing, developing, production and sales of surface treatment project system integration.
Main products of six categories: automatic painting line, intelligent painting robot system, automatic shot blasting line, intelligent shot peening robot system, automatic thermal spraying system, energy saving and environment friendly painting equipment.
The products are mainly used in the fields: new materials, new energy, engineering machinery, automobile manufacturing, container, marine engineering, aerospace, port bridge, electrical appliances, environmental engineering, printing and papermaking machinery, medical machinery, textile machinery etc.
The surface engineering system integration produced by our company has the characteristics of intelligence and automation, and it can realize the automatic control of industrial production process, so it belongs to the automatic equipment. According to the "high-end equipment manufacturing industry" that defined by the“125 plan” , it mainly includes high value-added high-tech equipments that required by the transformation and upgrading of traditional industries and the development of strategic emerging industries, products of our company belongs to the high-end equipment, which is a strategic industry to provide technology and equipment for other sectors of the national economy
